Using the TSA
Description:
The TSA is a terminal strip adapter used to make easy connection to Team Digital products. It plugs directly into the the connectors on several products. This eliminates the need for ribbon cable and additional connections.
Examples:

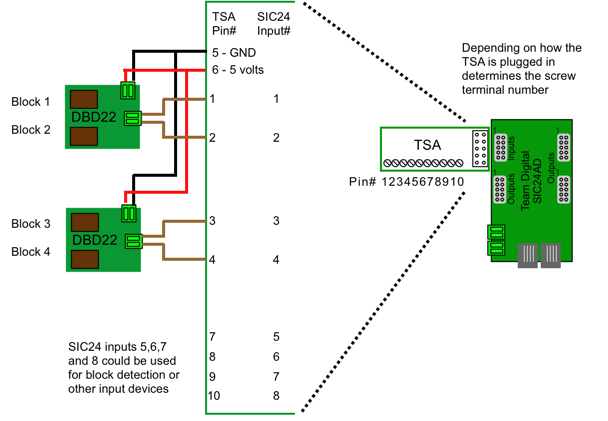

This diagram shows the TSA being used to connect block detectors to the SIC24ADs inputs.
Notice the SIC24AD pin number does not always match the input number.

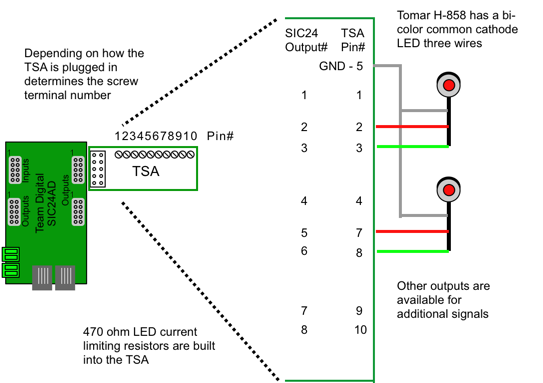

This diagram shows the TSA being used to connect signals to the SIC24ADs outputs.
This diagram shows how push buttons can be connected to a product using a TSA.
